High Spec Base Vehicle Packages

Our luxury conversions are based on the new high specification Euro 6.4 Fiat Ducato 2.2 140hp Multijet III manual. We also offer the Peugeot Boxer Euro 6 2.2 140hp.

Auto Base Vehicle Options (Fiat Only)

There is also the option of a fully automatic 8 speed gearbox on 5.4m and 5.99m Fiat models – the auto option is not available on the 6.36m van in 3500kg but can be ordered on a 4000kg chassis (license conditions apply if you are aged over 70).

Conversion Specification

Kitchen

Our high spec kitchens have ample work surface, cupboard storage, large pantry drawer and easy access drawer storage for cutlery, crockery and pans etc. The large stainless steel sink comes complete with mono mixer, drainer tray and wireware drainer.

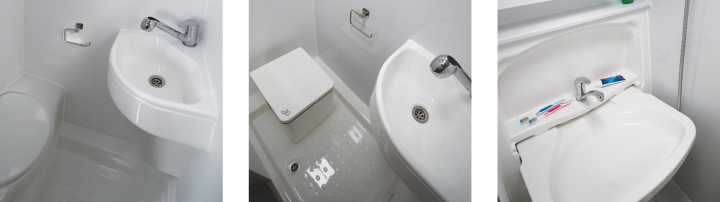

Washroom

Our spacious washrooms are fitted with Thetford electric flush toilet, drop down basin and mono mixer, mono shower mixer, mirror storage cabinet, chrome fitted accessories and heating vent outlet. The NOVA, VIBE & DUET models have a corner basin with combined mono shower mixer tap.

Living Area

The lounge area comes complete with luxury fabric trimmed upholstery, spacious overhead locker storage and two tables which are stored above the cab, a smaller drinks/dinette table and a full size dining table.

Sleeping

The lounge quickly converts into a comfortable sleeping area using the side cushions as the centre infill and is configured using our slide out bed system. We also offer a range of fixed bed options.

Electrical

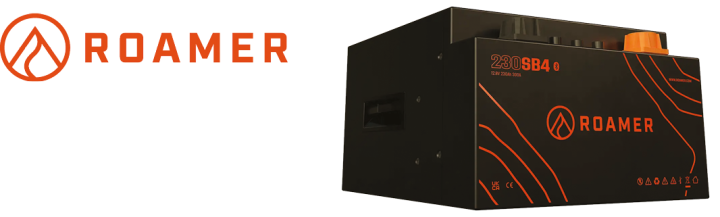

The leisure batteries and charging system are key factors in the day to day running of your motorhome which is why we now fit a 105a lithium battery, battery to battery charger, 20a mains charger and MPPT dual solar regulator with 160w solar panel as standard. There is also the option to upgrade to a 230a Lithium battery for extended off grid use.

Lighting

All our conversions have warm white LED lighting throughout, each light is individually switched to give you total control over your ambient lighting. There is also an LED awning light.

USB Ports

Numerous USB charging ports are conveniently sited to charge your devices, so you’ll be able to charge several devices at the same time.

Auto Retract Step

The entrance step will extend and retract at the press of a button and for safety reasons will automatically retract as soon as the ignition is turned on.

TV Aerial

Our roof mounted omni-directional digital TV aerial gives you the best possible chance of finding a signal as you retune between areas.

230v Mains

Sockets are conveniently placed in the kitchen area and lounge for use when you are on mains, we also include a 25m mains hook-up cable as part of our comprehensive package.

Heating and Plumbing

We have fully utilised the underside of the van to optimise the volume of the fresh and waste water. The underslung tanks are made of a thick insulated and durable high grade plastic so that they will not freeze when in use during the winter months. There is the option of adding a defrost element for use in extreme sub-zero temperatures.

Heating and Hot Water

The Truma Combi 4e boiler heating and hot water system operates on either gas or mains electric with an even distribution of heating outlets throughout the van. It is fitted with a digital thermostat and timer so that you can control the heating system day and night.

Refillable Gas Tank

All our vans are fitted with a 25L underslung gas tank with level gauge monitor, this allows you to easily manage your gas and significantly reduces the cost of refilling.

Windows and Rooflights

Privacy tinted double glazed windows and large Heki rooflights ensure that the living area is light, well ventilated and condensation free. All windows and rooflights have blinds and flyscreens.

Insulation

All our van conversions are fully insulated with grade 3 thermal insulation, fully winterised and perfect for all year round use.

The Charging System

The quality of your leisure batteries is important which is why we now fit lithium as standard. What is equally important is the means by which the leisure battery is charged – the leisure battery will receive a charge from three sources:

  1. Mains hook up charger – This has been the most common way of charging the leisure batteries and in the past mains hook up was necessary to maintain a charge to the batteries. Now with alternative charge sources available, it is possible to maintain a charge to the leisure batteries without the need for a constant mains supply, giving you the option to spend more time off grid.
  2. Battery to battery charger when the engine is running – When the vehicle engine is running, the battery to battery charger charges the leisure batteries.
  3. Solar panel with MPPT dual regulator – A roof mounted 160w solar panel is a good source of power and we fit one 160w as standard to trickle charge the batteries giving you several days independent camping. To achieve prolonged periods of static mains free camping we recommend that you add a second 160w solar panel and upgrade to the 230a lithium battery.

Conversion Options

Door Finishes

All doors come as standard in our matching Sand Oak finish with the option to upgrade the kitchen area doors to Nimbus Grey.

Fabric Trimmed Upholstery

Our luxury upholstery comes as standard with a Dove Grey fabric trim.

Leather Trimmed Upholstery

For added durability our luxury upholstery is also available with a Grey Leather trim creating an easy wipe clean finish. The front seats are also trimmed in leather to match.

The fabric and leather trimmed upholstery options available on the range of Consort van conversions.
Fabric Trimmed (left), Leather Trimmed (right)

Upholstery Protection

Protect your upholstery from spills and stains using the very latest upholstery guard.

Nearside Bed Extended (REEF, PACE, OSLO models only)

The nearside part of the bed can be extended from 6’3″ to 6’6″ which works well for our taller customers – this is achieved by taking 3″ from the adjacent kitchen unit.

Truma Diesel & Electric Boiler

The new Truma 4de diesel and electric boiler is ideal for those wishing to spend more time off grid using the diesel stored in the van fuel tank rather than relying on the availability of LPG to refill the underslung gas tank.

Fiamma F80S Awning

The Fiamma wind out awning creates the perfect shade area adjacent to the sliding door for those hot sunny days.

Fiamma Rear Door Mounted Bike Rack

The Fiamma carry-bike is designed specifically for the Fiat Ducato and will carry two bikes with a combined weight of up to 35kg – it folds up against the rear door when not in use.

Standard Tow Bar

We fit a Ducato specific high quality tow bar with 13 pin electrics suitable for towing or to accommodate a tow bar mounted bike rack.

Swing Away Tow Bar (for Bike Rack)

A swing away tow bar can be fitted to take a tow bar mounted bike rack – this will allow the bike rack to swing away from the rear doors giving you full access to the rear boot storage area. We stock both Thule Velo Swing and the Memo Swing Away.

Avtex 24″ Smart TV/DVD

We fit the very latest Avtex 24″ Smart TV/DVD fitted with an adjustable bracket. The Smart facility gives you access to all your favourite catch up channels – use your phone or a mobile router to create a Wi-Fi connection.

Flyscreen for Sliding Door

An internal sliding flyscreen can be fitted to the sliding door to allow extra ventilation and deter flying insects from getting in.

External Gas Barbeque Point

An external gas barbeque point can be fitted on the near side rear quarter to connect your barbeque to the underslung gas tank supply.

Fresh Water Tank Defrost

A 12v heated element can be fitted to the fresh water tank to help prevent the water freezing in sub-zero temperatures.

Ceramic Paint Protection

A durable ceramic high gloss finish to protect your paint work and maintain it’s shine without the need for polishing, this also makes washing your motorhome so much easier.

Roof mounted 12v Air Con (only available with 230a battery)

A 12v roof mounted Air Con Unit can be fitted in place of the front 400 x 400 Heki with careful battery management.

Cab Screens

Internal Thermal Cab Screens

Internal thermal screens attach to the front windscreen and the door windows to insulate the cab area. These also work to black out the cab keeping it cooler in the summer and warmer in the winter.

Remis Cab Blinds

An alternative to internal thermal cab screens are Remis concertina cab blinds which can be fitted to the cab area.

Mains Free Plus

Additional 160w Solar Panel

A second 160w solar panel can be fitted to add even more charge to the leisure batteries, this is ideal for those who prefer to spend more time mains free camping.

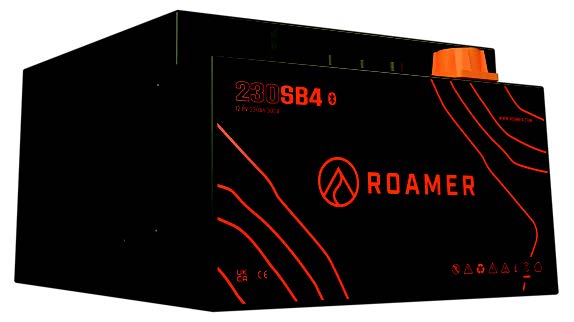

Lithium 230a battery upgrade

For extended off grid use and when using an inverter the 230a Lithium battery upgrade together with the additional 160w solar panel will provide the optimum level of 12v power.

1500w inverter

An inverter will turn the 12v power in the battery to 230v and is ideal for those who need a level of mains power when off grid – typically used for a hair dryer, charging electric bike batteries, laptops etc.
